Jm23 Jm26 Jm28 Thermal Mullite Insulation Refractory Brick For Industrial Furnace video

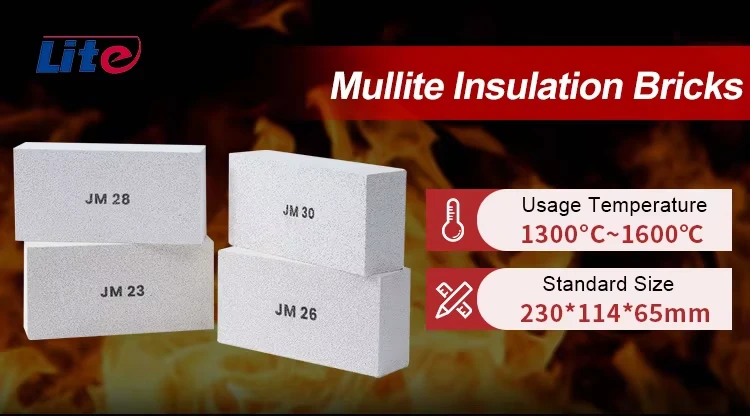

Jm23 Jm26 Jm28 Thermal Mullite Insulation Refractory Brick For Industrial Furnace

Mullite insulation bricks are a type of high-alumina refractory material with mullite as the main crystal phase. The bulk density of this lightweight insulation brick ranges from 0.60 to 1.25 grams per cubic centimeter. Its working temperature range is between 1300°C and 1600°C. The refractoriness of mullite insulation bricks is relatively high, reaching above 1790°C. The softening onset temperature is between 1600 and 1700°C. It has good thermal shock resistance, insulation and heat preservation performance, and structural strength. It is an ideal insulation choice for industrial kilns, thermal equipment and other high-temperature environments.

Send Inquiry

Description

Overview of Mullite insulation bricks

Mullite insulation bricks are a type of high-alumina refractory material with mullite as the main crystal phase. The bulk density of this lightweight insulation brick ranges from 0.60 to 1.25 grams per cubic centimeter. Its working temperature range is between 1300°C and 1600°C. The refractoriness of mullite insulation bricks is relatively high, reaching above 1790°C. The softening onset temperature is between 1600 and 1700°C. It has good thermal shock resistance, insulation and heat preservation performance, and structural strength. It is an ideal insulation choice for industrial kilns, thermal equipment and other high-temperature environments.

product-750-418

Features Mullite insulation bricks

Excellent high-temperature performance:

It has a high operating temperature, usually ranging from 1300℃ to 1600℃, and can even reach above 1700℃. It is an ideal material for the inner lining of high-temperature kilns.
Good heat preservation effect and significant energy saving: The interior has a porous structure, with a low thermal conductivity, which can effectively reduce heat loss and significantly decrease fuel or power consumption.
Lightweight and low in density: It is a lightweight refractory material, with a volume density usually ranging from 0.6g/cm³ to 1.25g/cm³. This can significantly reduce the overall structural load of the kiln, lower the cost of steel structures and foundation construction.
Good thermal stability: It can withstand sharp temperature changes without cracking or peeling, and has a long service life.

product-750-662

Mullite Insulation Brick Technical Parameter Table

Parameter JM23 JM26 JM28 JM30
Al₂O₃ Content (%) 45% 55% 60% 65%
Fe₂O₃ + Alkali Oxides (%) Low Low Low Low
Bulk Density (g/cm³) 0.6–1.2 0.6–1.2 0.6–1.2 0.6–1.2
Apparent Porosity (%) 66–73% 66–73% 66–73% 66–73A%
Cold Compressive Strength (MPa) 3–7 3–7 3–7 3–7
Thermal Conductivity (W/(m·K)) 0.03–0.035 0.03–0.035 0.03–0.035 0.03–0.035
Max Service Temperature (℃) 1350 1450 1500 1550


applications of Mullite Insulation Brick

1. Metallurgical industry
2. Ceramics and Building Materials Industry
3. Petrochemical Industry
4. Machinery and Heat Treatment Industry
5. Other high-temperature fields
Henan Lite Refractory Materials Co., Ltd. has served over 5,000 projects and has been dedicated to the production and research and development of refractory materials for 30 years. It possesses professional technology and a mature team. Its products have been exported to various markets around the world and it is a highly renowned enterprise. Moreover, it has overseas warehouses, which facilitate rapid delivery and ensure product reliability.
product-750-1071
product-750-632
1.Are we a manufacturer or supplier? We are a manufacturer. Our company was established in 1994 and has been dedicated to refractory materials for 30 years. Our customers are spread across 120+ countries, and we serve over 3,000+ global customers. We have four major production bases, with an area of over 50,000 square meters. Our annual production capacity is 150,000 tons, and we have a complete product line to ensure production capacity and delivery time.
2.Do you offer product customization? Support customization, with over 150 patents, capable of developing new products within 7 days for each model, and 300+ sets of molds available for free sample production.
3.How do you conduct quality testing on your products? We strictly follow the quality management system, and we have a logistics chemistry laboratory. Here are some of the ways we conduct quality testing: 1) Raw material inspection 2) In-process inspection 3) Finished product inspection 4) Performance testing 5) Stability testing 6) The product qualification rate of the factory is ≥ 99.5%, and a test report is provided for each batch of products.
4.What is your delivery time? Usually, the goods will be dispatched within 7 to 15 days after the deposit is received. For urgent orders, please contact us to obtain a faster solution. We can dispatch the goods within 72 hours.
5.Can you provide samples? Yes, free samples are available. Customers only need to cover the shipping cost.
6. How is the after-sales service of your company? Global after-sales support, 24-hour response, with 3 international engineering teams, supporting the implementation of global projects, with the fastest response time of 24 hours. 9S one-stop service system, integrated engineering services, providing full-process engineering solutions including design, production, construction, training, and after-sales, helping customers reduce costs and increase efficiency.
7.Why choose us over other suppliers? We have a large scale, strong strength, and rich experience, professional technology, and perfect customer service, and have obtained various certifications such as CE/ISO9001/ISO45001/CNAS/SGS.
8.What are your payment methods? A-We accept various payment methods, including credit cards, PayPal, bank transfer, and Western Union. The specific payment method can be negotiated.

Hot Tags: jm23 jm26 jm28 thermal mullite insulation refractory brick for industrial furnace, China jm23 jm26 jm28 thermal mullite insulation refractory brick for industrial furnace suppliers, manufacturers, factory

Mullite insulation bricks are a type of high-alumina refractory material with mullite as the main crystal phase. The bulk density of this lightweight insulation brick ranges from 0.60 to 1.25 grams per cubic centimeter. Its working temperature range is between 1300°C and 1600°C. The refractoriness of mullite insulation bricks is relatively high, reaching above 1790°C. The softening onset temperature is between 1600 and 1700°C. It has good thermal shock resistance, insulation and heat preservation performance, and structural strength. It is an ideal insulation choice for industrial kilns, thermal equipment and other high-temperature environments.

Parameter JM23 JM26 JM28 JM30 Source
Al₂O₃ Content (%) ~45 ~55 ~60 ~65 1, 3
Fe₂O₃ + Alkali Oxides (%) Low Low Low Low 1, 2
Bulk Density (g/cm³) 0.6–1.2 0.6–1.2 0.6–1.2 0.6–1.2 2, 6
Apparent Porosity (%) 66–73 66–73 66–73 66–73 6
Cold Compressive Strength (MPa) 3–7 3–7 3–7 3–7 5, 6
Thermal Conductivity (W/(m·K)) 0.03–0.035 0.03–0.035 0.03–0.035 0.03–0.035 5
Max Service Temperature (℃) 1350 1450 1500 1550 2, 5
