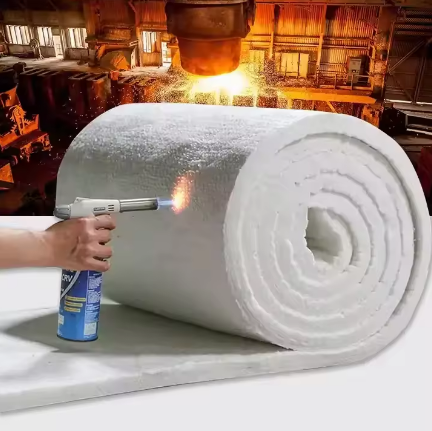

High-Quality Ceramic Fiber Blanket (1100℃-1600℃) - Lightweight Insulation For Industrial Furnaces & Thermal Protection

1. Product Overview

This Ceramic Fiber Blanket is manufactured via strict processes: first, high-purity bauxite and quartz are melted in electric furnaces (1700-1800℃) to form molten inorganic glass; then, high-pressure air is used to spin the melt into ultra-fine fibers (3-5 μm diameter); after that, the fibers are laid into a continuous cotton layer and reinforced via needle-punching (regular needle replacement ensures strong tensile strength); finally, heat treatment (200-300℃) removes moisture and stabilizes the structure. Unlike traditional insulation materials (e.g., rock wool, foam boards), it's a pure inorganic material-non-combustible (Class A fire rating), no formaldehyde release, and maintains stability at 1100℃-1600℃. The product covers 4 temperature grades (1100℃ ordinary, 1260℃ standard, 1400℃ high-temp, 1600℃ ultra-high-temp) and is supplied in standard rolls (width 610/1220mm, length 3600-7200mm, thickness 6-50mm) with 3 packaging options (single roll woven bag/carton, 2-roll woven bag) for secure transportation.



2. Key Features

Grade-Specific High-Temp Performance:

1100℃ grade: For low-temp equipment (e.g., drying ovens, household appliance insulation)

1260℃ grade: For ceramic/glass kiln backups (most widely used, cost-effective)

1400℃ grade: For steel annealing furnace linings (resists frequent thermal shocks)

1600℃ grade: For petrochemical cracking furnaces (ultra-high temp stability)

Ultra-Efficient Insulation: Thermal conductivity 0.03-0.12 W/m·K-50% lower than traditional refractory bricks, reducing industrial furnace heat loss by 25-30% and cutting fuel consumption by 18-22%.

Lightweight & Easy Installation: Density 64-160 kg/m³ (1/5-1/10 of dense refractory materials), single roll weight ≤80kg-lowering furnace structural load by 40%; good flexibility (can be bent/cut) allows quick fitting of irregular surfaces (e.g., furnace arches, pipeline elbows), installation efficiency 2x higher than bricks.

Stable & Durable: Reheating linear shrinkage ≤3% (1800℉/3h), Fe₂O₃ content ≤0.2% (anti-oxidation); withstands 1000℃-room temp thermal cycles ≥50 times without cracking, service life 3-5 years (2x longer than ordinary fiber blankets).

Multi-Scene Adaptability: Beyond industrial furnaces, it works for building fireproofing (wall/door gaps), automotive exhaust insulation, and aerospace test equipment-thanks to sound absorption (noise reduction ≥20dB) and chemical stability (resists most acids/alkalis except molten alkali).



3. Technical Parameters

Parameter	1100℃ Grade	1260℃ Grade	1400℃ Grade	1600℃ Grade
Classification Temp	1100℃	1260℃	1400℃	1600℃
Al₂O₃ Content (%)	48-52	52-55	55-60	60-65
SiO₂ Content (%)	45-48	42-45	38-42	32-38
Fe₂O₃ Content (%)	≤0.3	≤0.2	≤0.2	≤0.1
Density (kg/m³)	64-128	80-140	96-150	128-160
Thermal Conductivity (350℃, W/m·K)	≤0.08	≤0.09	≤0.10	≤0.12
Tensile Strength (MPa)	≥0.08	≥0.09	≥0.10	≥0.12
Shrinkage (1800℉/3h, %)	≤3.0	≤2.5	≤2.0	≤1.5
Standard Size (mm)	Width 610/1220; Length 3600-7200; Thickness 6-50	Same as left	Same as left	Same as left
MOQ	1 roll (standard); 10 rolls (customization)	Same as left	Same as left	Same as left



4. Application Scenarios

Industrial Furnaces:

Steel industry: Reheating furnace linings (1400℃ grade) – resists high-temp gas erosion;

Ceramic industry: Tunnel kiln roof/kiln car insulation (1260℃ grade) – lightweight reduces kiln load;

Petrochemical industry: Cracking furnace secondary linings (1600℃ grade) – ultra-high temp stability.

Power & Environmental Protection:

Power plant boilers: Combustion chamber insulation (1260℃ grade) – cuts heat loss;

Waste incinerators: Secondary combustion chamber linings (1400℃ grade) – resists acidic flue gas.

Building & Automotive:

Building fireproofing: Wall/door gap filling (1100℃ grade) – stops flame spread;

Automotive: Exhaust pipe/muffler insulation (1260℃ grade) – reduces heat transfer to the car body.

Household & Specialty:

Electric ovens/microwaves: Internal insulation layers (1100℃ grade) – improves thermal efficiency;

Aerospace test chambers: Thermal protection layers (1600℃ grade) – adapts to extreme temps.



5. Service & Support

Free Customization: Supports thickness (6-50mm), length (3600-7200mm), density (64-160kg/m³) customization with MOQ 10 rolls; logo/packaging customization (no extra cost) – 3 days to confirm sample drawings.

Tiered Pricing & Discounts: Factory-direct prices: 1-9 rolls ($2.38/roll), 10-99 rolls ($2.14/roll, 10% off), ≥100 rolls ($1.24/roll); $80 off for $1000+ orders – lower cost for bulk projects.

Samples & Quality Assurance: Free 0.5㎡ samples provided (customer covers shipping); each batch undergoes 100% inspection (fiber diameter, thermal conductivity, shrinkage) with SGS test reports; 1-year warranty (free replacement for cracking/oxidation).

Fast Delivery & Logistics: Standard rolls shipped within 7 days (1-1000 rolls), bulk orders (>1000 rolls) negotiable; packaging: moisture-proof woven bags/cartons + fumigated pallets; supports DHL/FedEx for samples, sea freight (Qingdao/Tianjin ports) for bulk – door-to-door service available.
