Custom Silicon Carbide Square Beam Supplier

We are always striving to achieve product excellence in order to provide our customers with best High Alumina Insulating Brick, Bubble Alumina Brick, Refractory Plastic and all-round service. Our company strengthens the integration of technical ability, improves the product research and development ability, enhances the core competitiveness, enhances the cost control ability, the enterprise culture construction, enhances our company's core competitiveness. After years of research and exploration in the field of new materials, our company has been developed to date, integrating R&D, production and sales. Sincerity is not only the cornerstone of our century old foundation, but also the driving force for us to build a first-class group. We provide our customers with the most suitable production needs, the best quality products and the most satisfactory after-sales service.

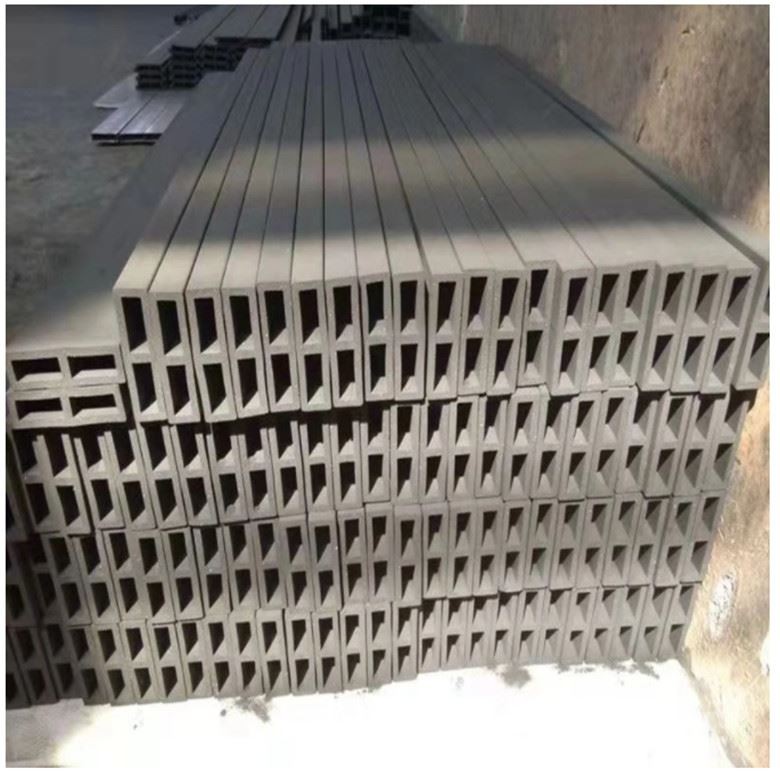

1. Silicon Carbide Beam Description

Silicon carbide beams have a series of basic advantages and characteristics such as high strength, high hardness, wear resistance, corrosion resistance, oxidation resistance, thermal shock resistance, high thermal conductivity, and low thermal expansion coefficient. It can be used to manufacture many products, such as cooling air pipes, thermocouple protection pipes, temperature measuring pipes, seals, and special-shaped parts.

Size of section		Wall thickness	Concentrated loading （kg.m/L）		Uniformly distributed loading(kg.m/l)
W side	H side		W side	H side	W side	H side
30	30	5	74	74	147	147
30	40	5	117	95	258	190
40	40	6	165	165	330	330
50	50	6	283	283	567	567
50	60	6	374	331	748	662
50	70	8	573	451	1143	902
60	90	9	1060	799	2120	1598
80	80	7	935	935	1869	1869
100	100	8	1708	1708	3416	3416
110	110	10	2498	2498	4997	4997

2. Silicon Carbide Beam Feature

1. Good energy-saving effect.

2. Lightweight and high carrying capacity.

3. Excellent resistance to degeneration at high temperatures.

4. High thermal conductivity

5. Low thermal expansion coefficient

6. Extremely high hardness

3.Silicon Carbide Beam Application

Silicon carbide beams are used in the loading structure system of tunnel kilns, shuttle kilns, and many other industrial kilns. It can also be used in sanitary ware, kiln furniture crucibles, glass industry, sliding bearings, the glazed firing of tableware, heat exchangers and burners, etc.

4.Packing

1. 50 pieces in a wooden box (fully enclosed, safe, and secure)

2. 800kg~1000kg /wooden box.

3. Anti-collision protection such as foam board

4. 3-layer wood composite panel, sturdy, impact-resistant, drop resistant

In order to seize the market opportunity, attract more new customers and improve business income, our company will seize the opportunity to launch Custom Silicon Carbide Square Beam Supplier. Our company has advanced equipment with high degree of automation, which can provide considerate services to customers with different needs. More than 26 years, Professional companies from all over the world take us as their long-term and stable partners.
