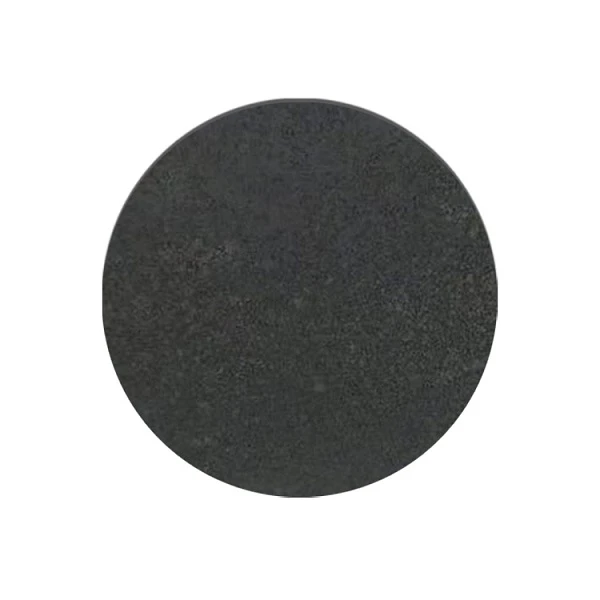

Silicon Carbide Kiln Shelf Silicon Carbide Ceramic Plates

Silicon Carbide Ceramic Plate Description

Silicon carbide ceramic plates have a series of basic advantages and characteristics, such as: high strength, high hardness, wear resistance, high temperature resistance, corrosion resistance, oxidation resistance, thermal shock resistance, high thermal conductivity, low thermal expansion coefficient , Creep resistance at high temperatures can be used to manufacture many products, such as beams, cooling air pipes, thermocouple protection tubes, temperature measurement tubes, seals and special-shaped parts.

Our website http://lite-kilnrefractory.com



Silicon Carbide Ceramic Plate Feature

Silicon carbide plates possess core characteristics such as high temperature resistance, excellent heat conductivity, high strength, low expansion, and corrosion resistance. They are suitable for industrial applications such as high-temperature kilns and wear-resistant components.

Excellent energy savings.

Lighter weight and higher load capacity.

Excellent distortion resistance at high temperature.

High thermal conductivity

Low thermal expansion coefficient

Extremely high hardness

Wear resistant



Technical parameter of Silicon carbide plates

Silicon carbide plates, as high-performance ceramic materials, must meet the stringent requirements of high-temperature structural materials in terms of technical parameters. They are mainly divided into two categories: basic physical properties and engineering application parameters. Some key indicators are as follows:

roperites	Units	Silicon carbide Material
Type		SiC		SiSiC	NSiC	RSiC
Chemical composition	SiC%	89	87	92	70	99
	SiO2 %	5	6	-	Si3N4 28	-
	Al2O3%	1	2	-	-	-
Bulk Desity	g/cm3	2.85	2.8	3.01	2.8	2.75
Apparent porosity	%	12	14	0.1	12	14
M.O.R.@20℃	MPa	50	48	260	180	100
M.O.R.@1300℃	MPa	58	56	280	185	120
C.T.E.@20℃-1000℃	10-6K-1	4.8	4.2	4.5	4.7	4.6
C.C.S	MPa	100	90	900	500	300
Max working temperature	℃	1450	1420	1300	1500	1650
application	Used in ceramic shuttle kiln, tunnel kiln and roller kiln, Kiln furniture.



Silicon Carbide Ceramic Plate Application

Silicon carbide plates, as an important form of silicon carbide materials, are applied in three core fields: new energy, high-temperature industries, and semiconductors. The specific scenarios and functions are as shown in the table below:

1.Electric vehicle inverters, photovoltaic inverters Improve energy conversion efficiency (reduce losses by approximately 50%), reduce equipment size Low conduction loss, high switching frequency

2.Internal linings of metallurgical blast furnaces, heating plates of kilns Resistant to temperatures above 1600℃, resistant to thermal shock, extend equipment lifespan (2-3 times higher than traditional materials) High thermal stability, low expansion coefficient

3.Epitaxial growth substrates, chip heat dissipation bases As the core material of the third-generation semiconductor, support the manufacturing of high-frequency, high-voltage devices High breakdown electric field, high thermal conductivity





Packing

(1)50 pieces in a wooden box (fully enclosed, safe and secure)

(2)800kg~1000kg /wooden box.

Anti-collision protection such as foam board

3-layer wood composite panel, sturdy, impact resistant, drop resistant

About us

Henan Lite Refractories Co., Ltd. was founded in 1994, is located in theRefractories Industrial Park, Chaohua Town, Xinmi City, Henan Province, with astandardized production base of 5,0000 square meters and an annual productioncapacity of more than 150,000 tons. The company is mainly engaged in theresearch and development, production and sales of refractory materials, as well asthe design, contracting, construction, maintenance of kiln projects and import andexport services of refractory materials. The company's R&D, production, qualityinspection, sales and other departments total more than 100 people, including 2PhDs, 2 professorial senior engineers, 10 masters of engineering, to ensure thatthe company's management with professionalism.

Our website http://lite-kilnrefractory.com



FAQ

1.Are we a manufacturer or supplier? We are a manufacturer. Our company was established in 1994 and has been dedicated to refractory materials for 30 years. Our customers are spread across 120+ countries, and we serve over 3,000+ global customers. We have four major production bases, with an area of over 50,000 square meters. Our annual production capacity is 150,000 tons, and we have a complete product line to ensure production capacity and delivery time.

2.Do you offer product customization? Support customization, with over 150 patents, capable of developing new products within 7 days for each model, and 300+ sets of molds available for free sample production.

3.How do you conduct quality testing on your products? We strictly follow the quality management system, and we have a logistics chemistry laboratory. Here are some of the ways we conduct quality testing: 1) Raw material inspection 2) In-process inspection 3) Finished product inspection 4) Performance testing 5) Stability testing 6) The product qualification rate of the factory is ≥ 99.5%, and a test report is provided for each batch of products.

4.What is your delivery time? Usually, the goods will be dispatched within 7 to 15 days after the deposit is received. For urgent orders, please contact us to obtain a faster solution. We can dispatch the goods within 72 hours.

5.Can you provide samples? Yes, free samples are available. Customers only need to cover the shipping cost.

6. How is the after-sales service of your company? Global after-sales support, 24-hour response, with 3 international engineering teams, supporting the implementation of global projects, with the fastest response time of 24 hours. 9S one-stop service system, integrated engineering services, providing full-process engineering solutions including design, production, construction, training, and after-sales, helping customers reduce costs and increase efficiency.

7.Why choose us over other suppliers? We have a large scale, strong strength, and rich experience, professional technology, and perfect customer service, and have obtained various certifications such as CE/ISO9001/ISO45001/CNAS/SGS.

8.What are your payment methods? A-We accept various payment methods, including credit cards, PayPal, bank transfer, and Western Union. The specific payment method can be negotiated.
