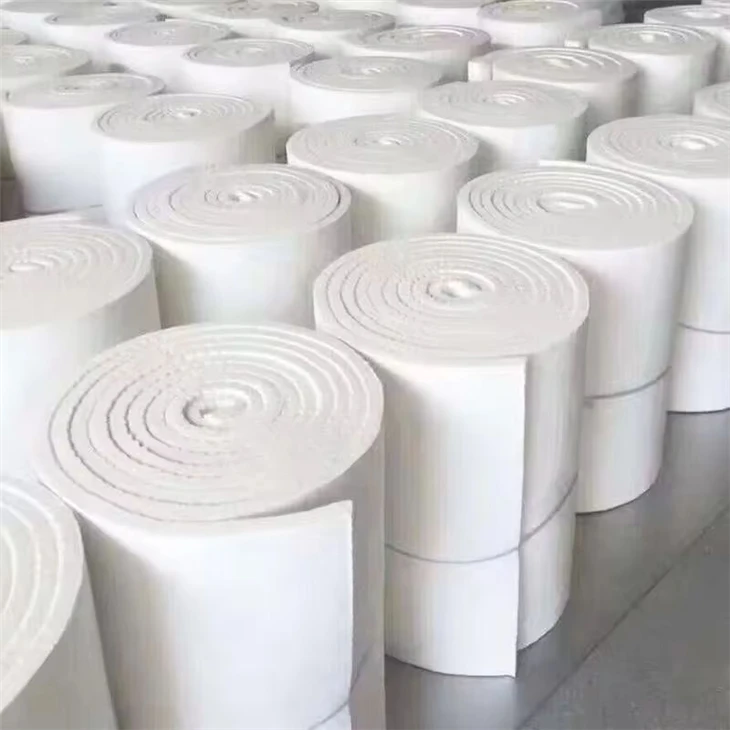

Ceramic Fiber Blanket

Name: China Ceramic Fiber Blanket Manufacturers Suppliers Factory - Ceramic Fiber Blanket Price
Brand: Lite
SKU: 285840876

Ceramic fiber insulation blanket is a kind of continuous cotton flat fiber blanket made of high-purity raw materials, which is formed by high-temperature melting, spinning, and needle punching. It is a pure inorganic fiber material, which can be divided into ordinary type (1100°C), standard type (1260°C), high-temperature type (1400°C), and ultra-high temperature type (1600°C) according to the classification temperature.

Send Inquiry

Description

overview of Ceramic Fiber Blanket

Ceramic fiber blanket is a kind of continuous cotton flat fiber blanket made of high-purity raw materials, which is formed by high-temperature melting, spinning, and needle punching. It is a pure inorganic fiber material, which can be divided into ordinary type (1100°C), standard type (1260°C), high-temperature type (1400°C), and ultra-high temperature type (1600°C) according to the classification temperature.

product-750-300

technical specification of Ceramic Fiber Blanket

Ceramic fiber blankets are a common type of insulation material. The technical parameters of this material mainly include the following aspects:

1. Operating Temperature
Different types of ceramic fiber blankets have different operating temperature ranges. For instance, the 1260 ceramic fiber blanket has an operating temperature of 1100℃, which can meet various high-temperature usage environments; while the ceramic fiber strip with a short-term operating temperature of up to 1260℃ and a continuous operating temperature of up to 1000℃; and there is also the fire-resistant ceramic fiber blanket, with a heat resistance temperature of up to 1600℃ and a fire resistance temperature even up to 1800℃.

2. Thermal Conductivity
Thermal conductivity is an important indicator for evaluating the insulation performance of materials. The thermal conductivity of 1260 ceramic fiber blanket at different temperatures is as follows: 0.09 W/mK (400℃), 0.176 W/mK (800℃), 0.22 W/mK (1000℃); the thermal conductivity of 1260 fiber blanket is 0.08 W/mK; the thermal conductivity of fire-resistant ceramic fiber blanket is 0.05 W/mK.

3. Tensile Strength
Tensile strength reflects the mechanical properties of the material. The tensile strength of 1260 ceramic fiber blanket is ≥ 21 MPa, which can ensure that the product is not easily damaged; the tensile strength of the refractory ceramic fiber blanket is 0.3 MPa.

4. Dimensions
The dimensions of the ceramic fiber blanket can be customized according to the usage requirements. For instance, the dimensions of the 1260 ceramic fiber blanket are 3600x610x10-50mm; the external dimensions of the ceramic fiber blanket module are 7200x610x10-50mm.
5. Other Parameters

Density: The fiber density of the 1260 fiber blanket is 2600 Kg/m³; the 1400 fiber cotton blanket has a fiber density of 2800 Kg/m³; the 1500 fiber blanket has a fiber density of 3100 Kg/m³.

Linear shrinkage: Ceramic fiber blankets have the advantage of low heat shrinkage.

Chemical stability: Ceramic fiber blankets have good resistance to acid and alkali corrosion and the ability to resist erosion by molten metals such as aluminum and zinc.

These are some of the main technical parameters of ceramic fiber blankets. These parameters determine their applicability and performance in different application scenarios.

product-750-890

features of Ceramic Fiber Blanket

Ceramic fiber blankets are a type of insulation material with multiple excellent properties. Their characteristics can be summarized from the following aspects.

High-temperature resistance:

The main components are alumina, silica, etc. The classification temperature ranges from 1050-1500℃. It can remain stable in high-temperature environments, does not melt or burn, and is an A-class non-combustible material. Good heat insulation effect:

The thermal conductivity is low, generally ranging from 0.03-0.12W/(m·K), which is more than 50% lower than that of traditional refractory bricks. It can effectively reduce heat transfer, reduce heat loss, and save energy. Light weight:

The density is only 96-256kg/m³, which is 1/5-1/10 of traditional refractory materials. It can reduce the weight of equipment, lower the load of kiln structures and foundations.

Good flexibility:

It is a non-crystalline material with good toughness and elasticity. It is easy to cut and bend, and can be processed into various shapes as needed, making installation and construction convenient.

Excellent thermal shock stability:

It can withstand sudden temperature changes, such as 1000℃ to room temperature repeated cycles, and is not prone to cracking due to thermal stress. It has a long service life.

Excellent sound absorption and noise reduction performance:

Its multi-fiber structure gives it good sound absorption and noise reduction capabilities. When sound waves pass through, they are reflected, superimposed, and collided by countless fibers, converting energy into heat, thereby reducing the intensity of the sound waves. Good chemical stability:

It is not prone to react with common chemical substances and can maintain stable performance in various harsh environments. It has strong corrosion resistance and oxidation resistance.

High dimensional stability:

Produced by special processes, the fibers are evenly distributed, with small dimensional errors and good flatness. It can maintain good stability in both high-temperature and low-temperature conditions.

product-750-452

applications of Ceramic Fiber Insulation Blanket

Ceramic fiber insulation blanket is a new type of fibrous lightweight refractory material, featuring excellent properties such as high temperature resistance, heat insulation, heat preservation, and fire resistance. Therefore, its application fields are very extensive. The following are the main uses of ceramic fiber blanket.

Insulation of Industrial Kilns and High-temperature Equipment: The Ceramic fiber blanket is often used as lining material for high-temperature kilns and heat treatment equipment in industries such as steel, glass, and ceramics. Its high-temperature resistance can effectively reduce heat loss and improve the energy efficiency of equipment.

Refractory Insulation Material: In buildings and industrial facilities, ceramic fiber blankets are used as fireproof insulation materials, especially around walls doors windows that require fire protection, which can effectively prevent the spread of flames.

Automotive Industry: Used for insulation and noise reduction of automobile exhaust pipes and muffler systems, ceramic fiber blankets can withstand high-temperature environments, prevent heat loss, and reduce noise pollution

. Power Equipment: Ceramic fiber blankets are used for thermal insulation of boilers and heat exchangers in power plants, which can reduce heat loss and improve the working efficiency of equipment.

Chemical Equipment: In the petrochemical industry, ceramic fiber blankets are used as insulation materials for pipes, reactors, and heating devices, which can effectively cope with high temperatures and corrosive environments.

Aerospace: Used in thermal insulation protection systems for aircraft and spacecraft, ceramic fiber blankets can provide excellent thermal insulation performance under extremely high-temperature conditions to protect equipment from thermal damage.

Household Appliances: In the internal insulation layer of some household appliances such as electric ovens, microwave ovens, water heaters, etc.,ceramic fiber blankets can improve thermal insulation performance and reduce heat leakage.

product-600-600

cooperation case of lite Ceramic Fiber Insulation Blanket

Henan Lite Refractory Materials Co., Ltd. has served over 5,000 projects and has been dedicated to the production and research and development of refractory materials for 30 years. It possesses professional technology and a mature team. Its products have been exported to various markets around the world and it is a highly renowned enterprise. Moreover, it has overseas warehouses, which facilitate rapid delivery and ensure product reliability.

introduction of Lite refractory Company

Henan Lite Refractories Co., Ltd. was founded in 1994, is located in theRefractories Industrial Park, Chaohua Town, Xinmi City, Henan Province, with astandardized production base of 5,0000 square meters and an annual productioncapacity of more than 150,000 tons. The company is mainly engaged in theresearch and development, production and sales of refractory materials, as well asthe design, contracting, construction, maintenance of kiln projects and import andexport services of refractory materials. The company's R&D, production, qualityinspection, sales and other departments total more than 100 people, including 2PhDs, 2 professorial senior engineers, 10 masters of engineering, to ensure thatthe company's management with professionalism.
