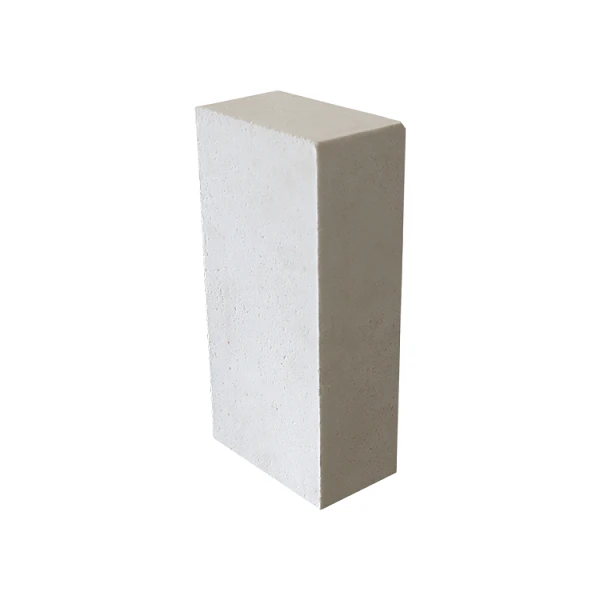

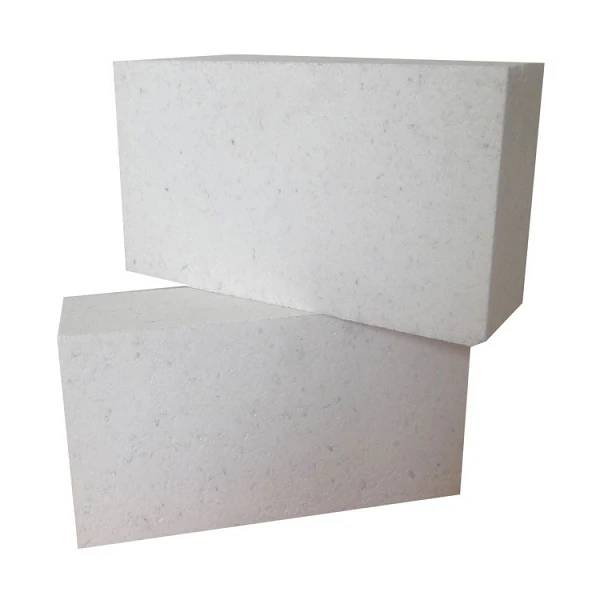

Corundum Mullite Brick Description
Corundum mullite bricks are made by burning bauxite or other materials with high AL2O3 content. Her refractoriness is usually higher than 1770°C. Because of its high refractoriness under load, corundum bricks are ideal materials for various industrial furnaces.
Corundum Mullite Brick Features
Corundum-mullite combines the high strength of corundum with the thermal shock resistance of mullite, making it an ideal refractory material for high-temperature and wear-resistant applications.
(1)High temperature resistance,
(2)High strength,high compression resistance,
(3)Excellent thermal shock resistance,
(4)High bulk density, good thermal conductivity,
(5)Good wear resistance and acid,alkali corrosion resistance.

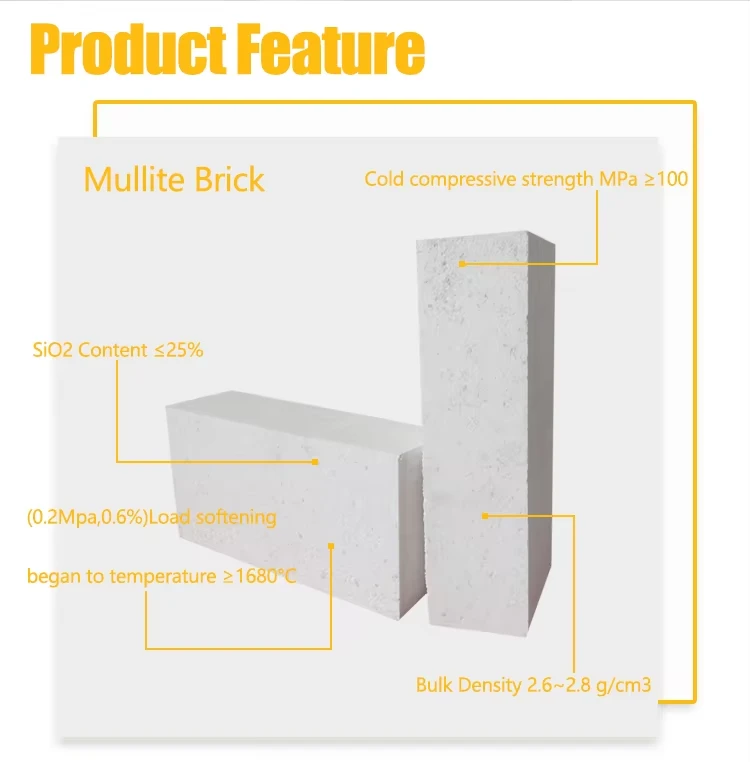

Technical parameter of Corundum Mullite Brick
Corundum-mullite, as a high-performance refractory material, possesses a variety of crucial technical parameters, which determine its performance in high-temperature environments. The following are the main technical parameters of corundum-mullite:
|
Item |
Corundum Brick 99 |
Corundum Brick 90 |
Corundum-mullite Brick |
|
Al2O3 % |
≥99 |
≥90 |
≥94 |
|
SiO2 % |
≤0.2 |
≤8 |
≤4 |
|
Fe2O3 % |
≤0.2 |
≤0.2 |
≤0.2 |
|
Bulk Density g/cm3 |
≥3.2 |
≥3 |
≥3.2 |
|
Apparent porosity % |
≤19 |
≤18 |
≤13 |
|
Cold compressive strength MPa |
≥100 |
≥100 |
≥100 |
|
(0.2Mpa,0.6%)Load softening began to temperature °C |
≥1700 |
≥1700 |
≥1700
|
Common shapes and sizes
|
Straight |
Arch |
Wedge |
Tile |
Other Shapes |
| L×W×H(mm)
230×114×65 230×114×75 230×114×32 220×110×60
|
L×W×H/h(mm)
|
L×W×H/h (mm)
|
L×W×H (mm)
230×230×38 230×230×50 230×230×65 230×230×75 |
Skew brick,Key brick, Checker, Soap, Taper, etc. |
4.Corundum Mullite Brick Application
Refractory corundum brick is used as inner lining brick in decomposing furnaces for petroleum and chemical industry,as well as chemical fertilizer industry.
1.Metalluragy industry
2.Heat treatment furnace
3.Chemical industry
4.Steel,non-ferrous smelting furnace
5.Boiler and waste incinerator
6.Coke oven
7.Blast furnace
Packing of Corundum Mullite Brick
(1)Carton packaging .
(2)tray + plastic film + fixed band .
(3)pallets: 1*1m,0.93*0.93m .
(4)tray weight: 1.6~2.0ton.
(5)packaging according to customer service requirements .
Certifications
Henan Lite Refroactory Co., Lt is specialized in the production, construction, new technology research and development and popularization and application of refractory materials for industrial high temperature furnace. Our company has a professional enterprise qualification and win more business honor.

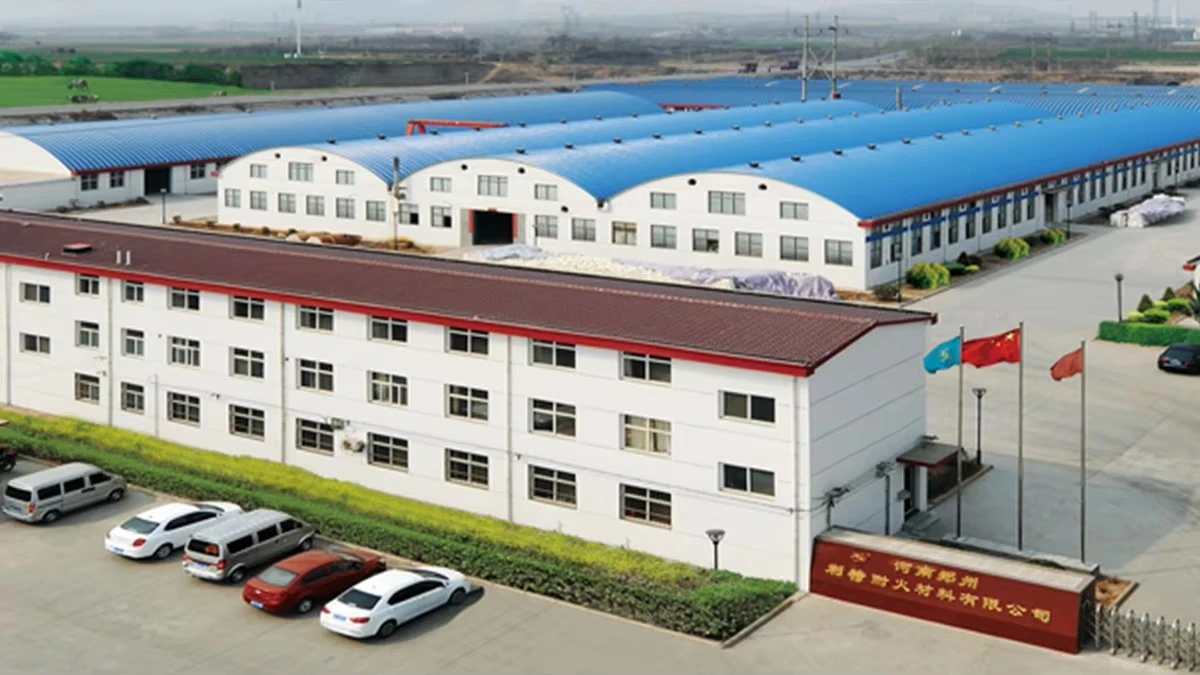

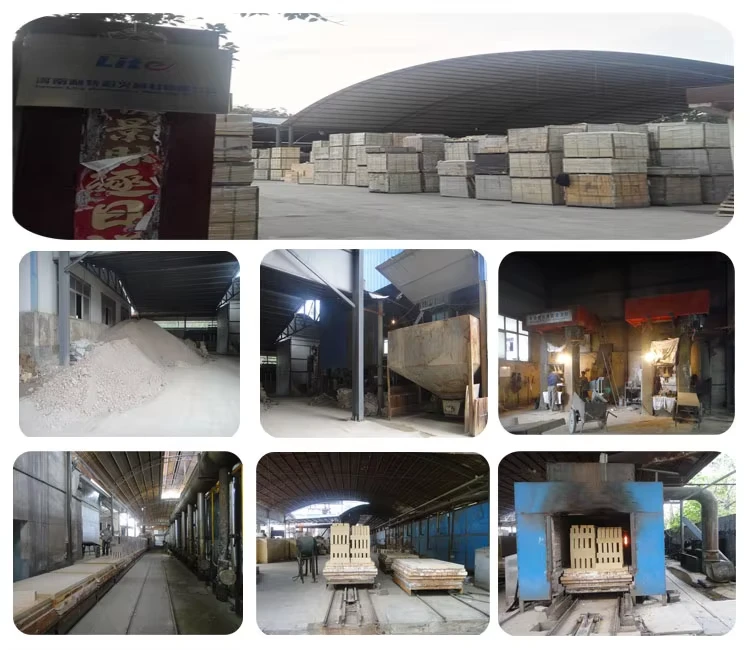

Henan Lite Refractories Co., Ltd. was founded in 1994, is located in theRefractories Industrial Park, Chaohua Town, Xinmi City, Henan Province, with astandardized production base of 5,0000 square meters and an annual productioncapacity of more than 150,000 tons. The company is mainly engaged in theresearch and development, production and sales of refractory materials, as well asthe design, contracting, construction, maintenance of kiln projects and import andexport services of refractory materials. The company's R&D, production, qualityinspection, sales and other departments total more than 100 people, including 2PhDs, 2 professorial senior engineers, 10 masters of engineering, to ensure thatthe company's management with professionalism.
